YATE NAVI Headlamp

General Information about the product

Warranty period: 24 months

Producer: Yate

USERS MANUAL

Charging the battery: unscrew the socket cover when the charging input (USB-C) appears. Insert the cable into the socket, connect the other end of the cable to a power source (computer, powerbank, etc.). Charging is indicated by a red LED that will glow green when charged. After disconnecting the cable, screw the cover to prevent moisture and dirt from entering the socket.

Replacing the battery: unscrew the battery cover, remove the battery and insert a new one. Take care to ensure correct polarisation. Use only 18650 rechargeable batteries. Screw the cover properly to prevent moisture from reaching the battery.

 Switching on and off is done by a switch on the side. Lighting modes:

Main light - full power / ½ power / ¼ power / red LEDs on / strobe / off. Dimming mode: with the main light on, hold the switch down for approx. 3 seconds, the main light will gradually start to dim (8 degrees). Double press: SOS.

Package contents: headlamp with headband, battery, charging cable

TAKE-BACK OF END-OF-LIFE ELECTRICAL EQUIPMENT / BATTERIES

We are committed to being environmentally friendly, so we provide you with easy and free ways to dispose of your end-of-life electrical equipment/batteries.

The consumer plays a crucial role in the system of disposal of electrical appliances and portable batteries. It is the consumer who decides what to do with the old appliance/battery. Old and unwanted electrical appliances and batteries do not belong in unsorted municipal waste, but should be handed over to collection points, so-called take-back points, from which they are sent for reuse or recycling.

The consumer must be informed by the symbols below that the electrical equipment/batteries concerned do not belong in municipal waste. All new electrical equipment/batteries are so marked. The symbol may be indicated directly on the equipment, on its packaging or in the instructions for use or warranty card.

Symbol 1 Symbol 2

How to get rid of old appliances/batteries?

- individuals can use the service: BUĎ LÍNÝ or Rebalík

- legal entities can use: Svoz pro registrované partnery

- at the point of sale at the address of store: [leave this option and add the address if you have a take-back point with REMA]

- through the publicly available collection network REMA Systém, a.s., which is designed for the take-back of electrical equipment

through the publicly available collection network REMA Battery, s.r.o., which is designed for the take-back of batteries

- through a publicly accessible collection network that is designated for take-back on the website of the Ministry of the Environment (ISOH 2)

- if necessary, you can get advice on the toll-free line Chytré recyklace (800 976 679)

Why recycle?

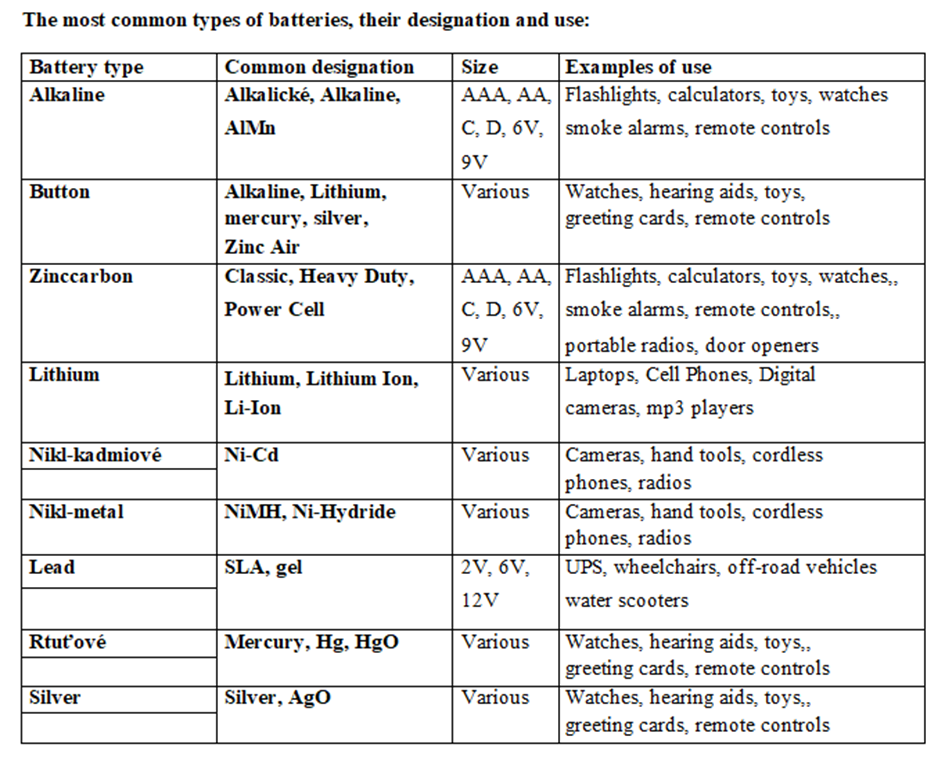

Not only electrical equipment, but also batteries contain many recyclable metals such as zinc, iron, manganese, nickel, cadmium and lead. Some of these substances are also very dangerous for the environment and human health, especially mercury, lead and cadmium. Selected batteries are often marked with the symbol of the chemical element they contain (Pb, Cd, Hg).

By taking batteries and electrical equipment to a take-back point, we save primary raw material resources, especially by recycling the material, and at the same time protect our environment from possible improper disposal.

Unused batteries that are not handed over for recycling through take-back points, but are stored, for example, in office drawers or elsewhere in households or companies, can cause fires. Lithium batteries in particular have this property. With regard to safety, it is therefore very important to recycle used batteries as soon as possible.
